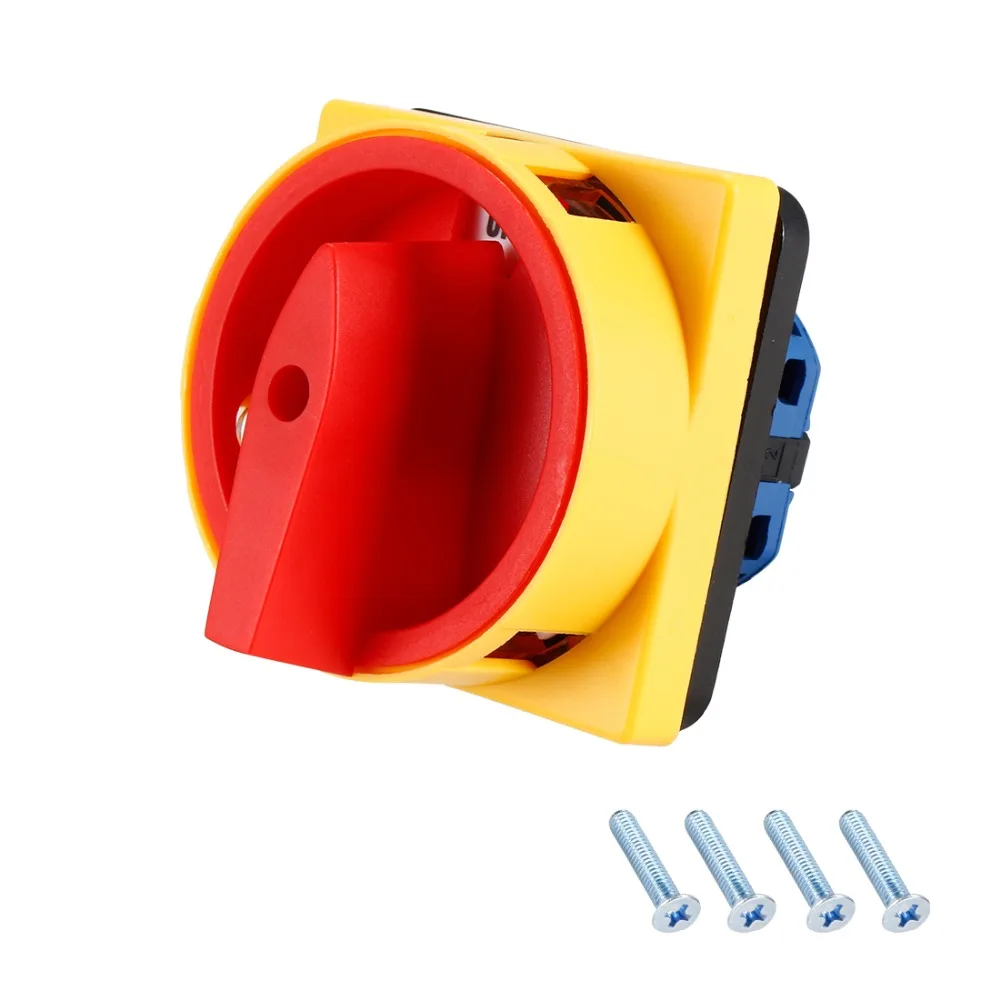

uxcell Changeover Switch 3 Position Rotary Selector Cam Switch Panel Mount 8 Terminals Latching Ui 500V Ith 10A

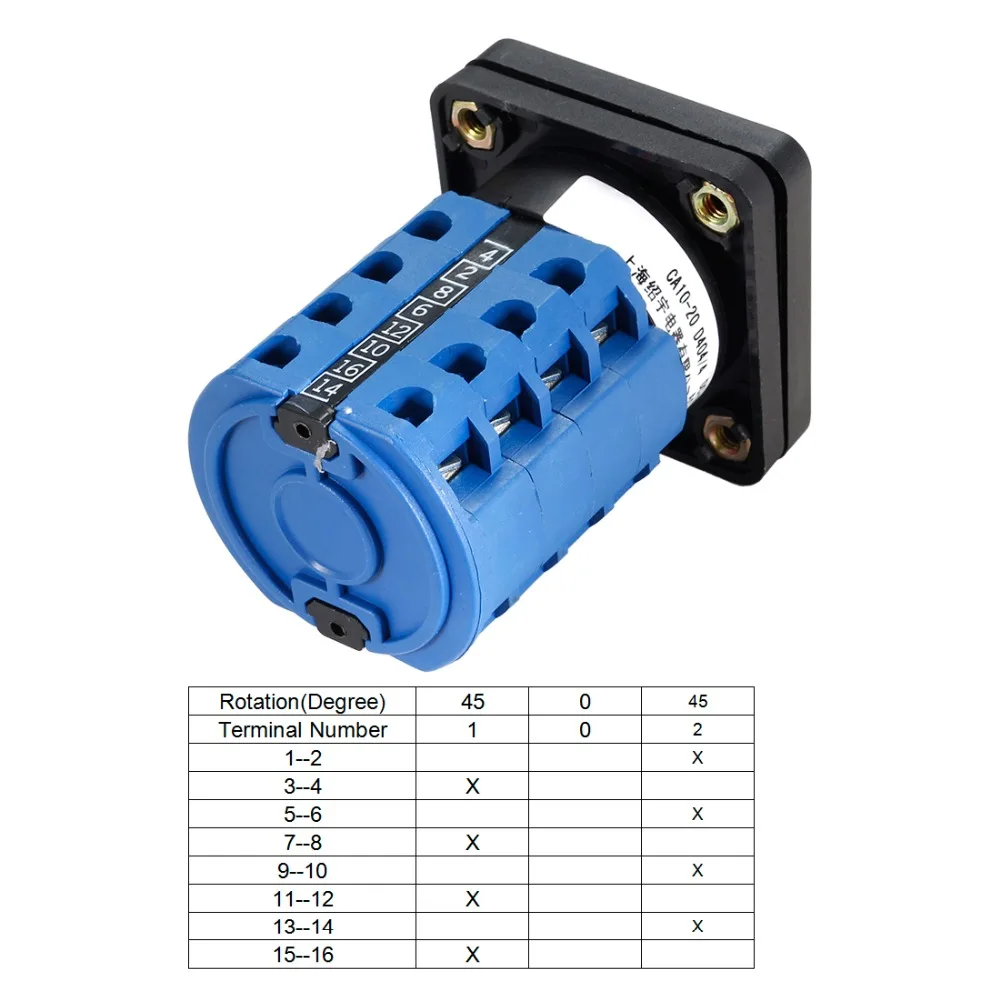

uxcell Changeover Switch 3 Position Rotary Selector Cam Switch Panel Mount 8 Terminals Latching Ui 500V Ith 10A: Industrial & Scientific,uxcell Changeover Switch 3 Position Rotary Selector Cam Switch Panel Mount 8 Terminals Latching Ui 500V Ith 10A: Industrial & Scientific,Model: LW8-10/2; Positions: 3; Terminals Quantity: 8; Action Type: Latching,Ui: 500V; Ith: 10A; Overall Size: 49mm x 49mm x 75mm / 1,93" x 1,93" x 2,95",L*W*H,Positioning Angle: 60-0-60 Degree ; Package Content: 1 x Changeover Switch,4pcs x Screw,Suitable for the thickness between 1mm to 4mm of the mounting board,Rotary selector design switch,easy to control,square plate and screws for easily mounting,Descriptions:,*Suitable for the thickness between 1mm to 4mm of the mounting board,*Rotary selector design switch,easy to control,square plate and screws for easily mounting,*Changeover switch mainly suitable for electrical wiring in the power switch and asynchronous motor start-up,reversing,speed switches,also can make the conversion of the control circuit,Specification:,*Model: LW8-10/2,*Positions: 3,*Terminals: 8,*Ui: 500V ; Ith: 10A,*Action Type: Latching,*Positioning angle: 60-0-60 Degree,*Mounting Type: Plate,Screw,*Mounting Hole Distance: 36mm x 36mm / 1,41inch x 1,41inch,L*W,*Overall Size: 49mm x 49mm x 75mm / 1,93inch x 1,93inch x 2,95inch,L*W*H,*Rating: DC-13: Ui: 220V,Ith: 0,14A ; AC-15: Ue / Ie: 380V / 1,5A,Package Content :,*1 x Changeover Switch,4pcs x Screw
uxcell Changeover Switch 3 Position Rotary Selector Cam Switch Panel Mount 8 Terminals Latching Ui 500V Ith 10A
